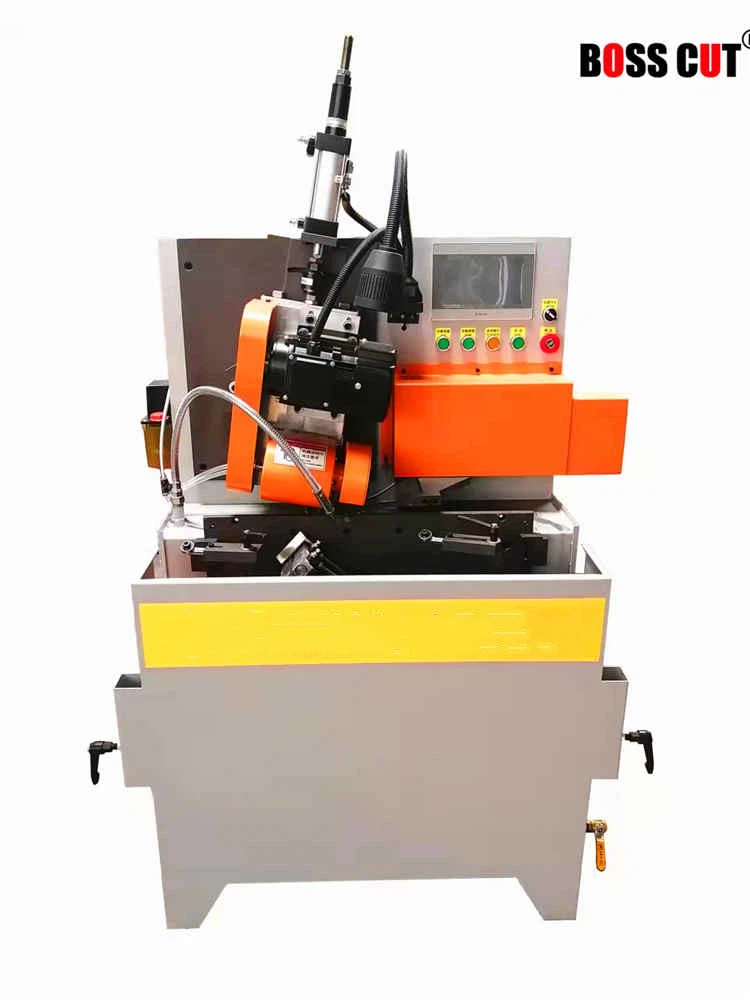

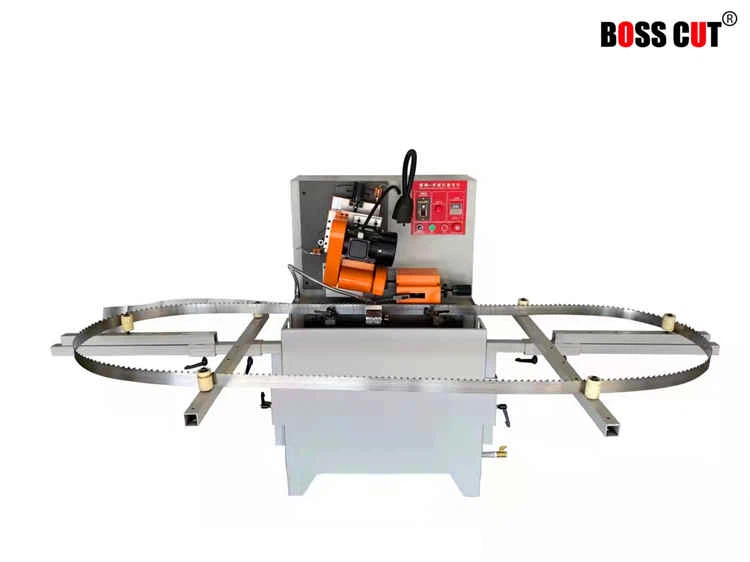

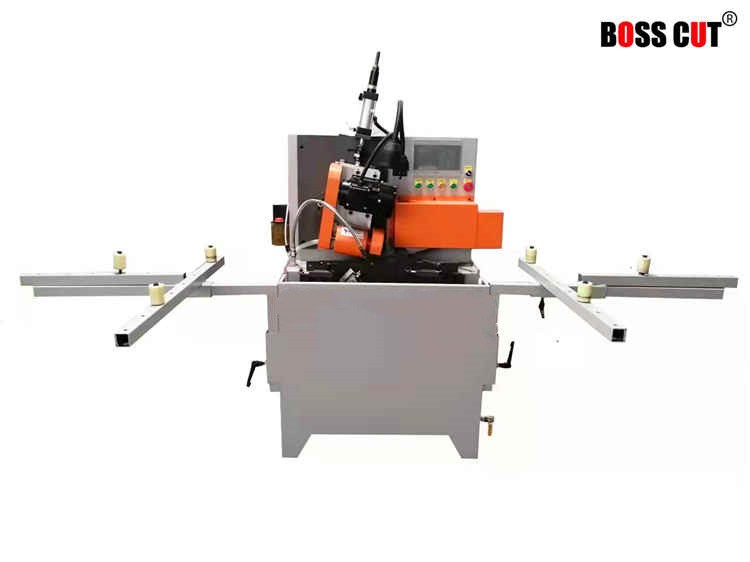

Band Saw Blade Sharpening Machine

Hangzhou Fuweisi Saw Industry Co., Ltd. is one of the most reliable manufacturers and suppliers of band saw blade sharpening machine in China. With abundant experience, we warmly welcome you to buy high quality band saw blade sharpening machine from our factory. Thank you for your interest in our products.

INTRODUCTION: This machine can precisely grind all kinds of joinery band saw blades, bimetal band saw blades, carbide band saw blades, frame saw blades. It is suitable for machinery factories, wood processing plants, steel sawing processing plants, automatic gear shifting, simple operation and grinding The cutting precision is high, the grinding angle and the grinding depth can be adjusted according to the needs, the saw path loss error is         ≤0.03MM, which greatly reduces the consumption cost.

Tooth pitch range: 5-36MM
Rated voltage(V):380 380AC,3phase,50Hz.
Rake angle angle range: 1-30°
Grinding wheel diameter: Φ125MM
Grinding wheel inner hole: Φ20MM
Grinding wheel speed: 6000RPM
Working speed: 1-40 teeth/min
Grinding wheel motor power: 0.6KW
Servo motor power: 0.75KW
Water pump power: 0.04KW
Water tank capacity: 35L
Whole machine power: about 1.35KW
Whole machine weight: about 220KG
Operating system: PLC CNC system
Wedling width of saw blade(>):13-150MM
Wedling thickness of saw blade(>):0.5-5MM
