Metal Cutting Circular Saw Blade

Company advantages

Why FUWEISI has the ability to provide you with high quality products?

As an experienced supplier specialism in metal cutting tools for more than 20 years , high precision and long life cutting tools to improve the efficiency and experience of your machining production process.

What metalworking tools series do we include?

HSS circular saw blade(M2 & M35), Carbide circular saw blade, Cermet circular saw blade, Friction, and other metal working tools type.

”BOSS CUT” would like to be your reliable supplier of metalworking tools!

Customized metal cutting tools can also be manufactured according to your drawings,which makes FUWEISI be different with others.

As a professional company producing saw blades, the factory combines R & D with production and finished product testing, using a self-production and self-use model to produce efficient and durable industrial-grade cutting tool.

First 12 3 4 5 6 7 Last 1/19

What is Metal Cutting Circular Saw Blade？

We have introduced multiple automated production lines from Germany, automatic rate above 80%, like Mitsubishi laser cutting machine, Gerling automatic welding machine and Automatic grinding machine. The produce process mainly includes: incoming quality control, laser cut body, tempering, grinding, stress-test, run-out test, welding teeth and final quality control. The factory combines R & D ability with finished product testing methods, using a self-production and self-use model to produce efficient and durable industrial-grade cutting tool.

Name	Metalworking saw blade
Application	TCT saw, Cermet saw, HSS saw
Suitable materials	Iron, steel, stainless steel, bronze,aluminum
Advantage	Long service life and Excellent cutting results

What is our circular saw blade mainly application?

Circular saw blades are used in industry and trade for Iron, steel, stainless steel, bronze,aluminum. Our available range of circular blades is made of various material types, including carbide saw, Cermet saw, HSS saw. PCD saws.

Cermet saw blade for tube cutting mostly.

Features Of Metal Cutting Circular Saw Blade

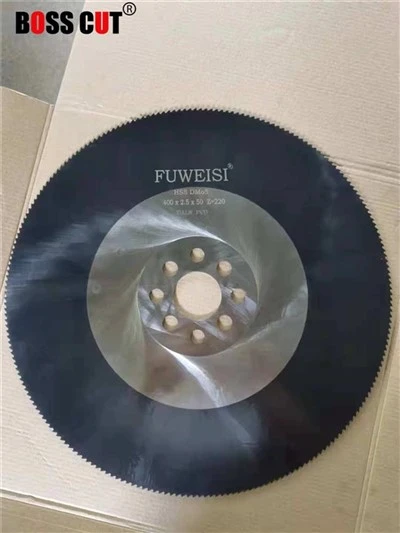

HSS M35 TIALN Circular Saw Blade For Metal

1. Durable quality alloy tool steel is

used with laser cutting technique,

which increases the stability and

liefetime of blade.

2.. Unique tooth geometry design

helps the cutting stability, efficiency,

and better finish.

3.Use super quality cermet tooth tip

material. Each tooth ground by high-

precision machine,which ensures

the accracy of cutting.

4.Cermet circular saw blades are

widely applicable to cut various

shapes, materials of work pieces.

- Light and easily-carried.

- The continuous rim is perfect for smooth.

- For precise, straight and aggressive cuts.

- Low-cost electroplated blade for stone.

- Especially for cutting stones, with the feather of better sharpness, no crushed edge, and long service life.

Basic Info.

Model NO.	CERMET Circular Saw Blade
Function	Metal Cutting
Shape	Round Type
Type	Circular Saw Blade
MOQ	10PCS
Materials	Durable Quality Alloy Tool Steel Material
Applications	Carbon Steel, Alloy Steel, Stainless Steel Cutting
Features	Long Lifetime, High Precision, High Efficiency
Compatible with Machine	CNC Circular Saw Machine
Quality Control System	100% Inspection Before Shipment
Transport Package	Tooth Protection, Cartons Packaging
Specification	250- 525mm
HS Code	82089000

Cermet Circular Saw Blade Detailed Specification Parameters
Specification (mm)	Outer Diameter (mm)	Blade Thickness(mm)	Body Thickness(mm)	Hole Diameter(mm)	Tooth Number(T)	Cutting Range
250	250	2.00	1.70	32	60	Carbon Steel; Alloy Steel(carbon content 0.15%~0.4%) Stainless Steel; Copper, Aluminum and Other Non-Ferrous Metal, etc.
	250	2.00	1.75	32	60
	250	2.00	1.70	32	72
	250	2.00	1.75	32	72
	250	2.00	1.70	32	80
	250	2.00	1.75	32	80
285/300	285/300	2.00	1.70	32	60
	285/300	2.00	1.75	32	60
	285/300	2.00	1.70	32	72
	285/300	2.00	1.75	32	72
	285/300	2.00	1.70	32	80
	285/300	2.00	1.75	32	80
	285/300	2.00	1.70	32	100
	285/300	2.00	1.75	32	100
	285/300	2.00	1.70	32	120
	285/300	2.00	1.75	32	120
315/330	315/330	2.25	2.00	32	60
	315/330	2.25	2.00	32	72
	315/330	2.25	2.00	32	80
360	360	2.60	2.25	40	60
	360	2.60	2.25	40	72
	360	2.60	2.25	40	80
380/400	380/400	2.60	2.25	40	60
	380/400	2.60	2.25	40	72
	380/400	2.60	2.25	40	80
425/460	425/460	2.70	2.25	50	60
	425/460	2.70	2.25	50	72
	425/460	2.70	2.25	50	80
500/525	500/525	2.70	2.30	50	60
	500/525	2.70	2.30	50	72
	500/525	2.70	2.30	50	80

TYPE OF TEETH FOR HSS SAW BLADE

A type tooth,geometry has been designed for machining

work,such as milling,with thin saw blades.

AW geometry has been designed for machining work,

such as slotting,with thin saw blades.

B For very thin wall tubes,it is not necessary to break

the chips,so the B geometry is suitable for such

applications.

BW With BW geometry,the teeth are alternately bevelled.lt

is most suitable for cutting light gauge steel tube and

sections on manual and semi-automatic machines.

The HZ tooth form is most suitable for solids and thick

wall tube cutting.The roughing tooth is bevelled on both

sides,and is between 0.2mm and 0.3mm higher than the

square finishing tooth.

Product Description

Product Name	HSS Dmo5 Circular Saw Blade For Metal Steel Pipe Cutting
Application	For cutting various steel material and form such as solid bar, pipe, rail etc. - For cutting various non-ferrous material as like aluminum, copper, bronze, brass of pipe, bar, sash and plate etc.
Material	W5/M2/M42/M35(HSS-Co5%)
Surface Treatment	VAPO,TIN,TICN,TIALN.
Tooth form	A/AW/B/BW/HZ
Bore Diameter	32mm,40mm,50mm or as request
Specification	Customized size as requested
Advantages	1.Good stability,easy cutting and good trimming 2.High hardness, High durability, High precision 3.High productivity in stainless steel cutting,High speed and high heat resistance 4.Low cutting resistance, Low noise, Low price 5.Professional manufacture.Long using time, Long period no deformation 6.OEM ODM acceptable

Diameter(mm)	Thickness(mm)	Arbor Hole(mm)	Number of teeth
250	1.2/1.6/2.0/2.5	32/40	80/100/110/260/200
275	1.2/1.6/2.0/2.5/3.0	32/40	110/120/140/160/200/240
300	1.6/2.0/2.5/3.0	32/38/40	80/90/100/120/140/180/240/280
315	2.0/2.5/3.0	32/40	80/90/100/120/140/180/240/280
325	2.0/2.5/3.0	32/40	90/100/120/140/180/240/280
350	2.0/2.5/3.0/3.5	32/40/50	80/90/100/120/140/180/240/280
400	2.5/3.0/3.5/4.0/4.5	40/50	70/80/90/100/110/120/140...............
450	2.5/3.0/3.5/4.0	40/50	80/90/100/120/140/180/240/280

TCT SAW BLADE FOR TUBE CUTTING

Circular saw blades with tungsten carbide inserts, referred to as TCT saw blades. Tungsten carbide is a hard material made of tungsten carbide powder (WC) through cobalt (CO) as a binder and sintered at high temperature, also known as tungsten steel. .Using cemented carbide as the cutter head and welding it on the substrate of the round alloy tool steel plate, it is called a cemented carbide circular saw blade. The substrate materials suitable for carbide circular saw blades are: 65Mn, 50Mn2V, SK5, SKS51 , 75Cr1, etc. Welding materials mainly include silver wire and silver solder sheet.

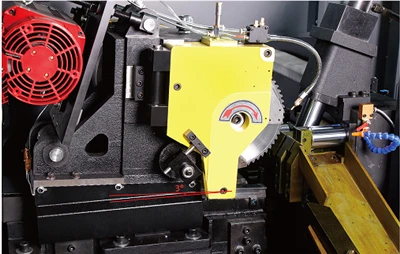

The saw blade is suitable for all automatic cold saw machines. It can be used for cutting all kinds of high, medium and low carbon steel bars and pipes, 45# steel, bearing steel, die steel and so on. It adopts German imported steel plate and high-quality ceramic alloy, which has the advantages of stable processing and good cutting effect. Special tooth shape and angle design ensure smooth cutting.

Advantages

Efficiency leap Precision and stability

1. Fully hardened steel blade body-delivers accuracy and resists bending and deflection for true cuts.

2. Germany imported steel body , European tipped, combined with special tooth type and technology .

3. Special tooth feature, very clean cutting, more material saving.

4. Factory direct sales insure more professional service and timely delivery time.

Advantages:

1. Universal application

2. Smooth cutting edge

3. Durable

4. Can be resharpened several times.

ITEM	DESCRIPTION
Brand	BOSSCUT
Product Name	Circular saw blade for metal cutting
Cutter Head	Ceramic Alloy
Steel Body	Germany HUGO steel plate
Application	Suitable for cutting steel bar, iron tubes and rods etc.
Machine	Automatic cold saw machines, Handheld saw machines, Portable saw machines.,etc
Certificates	ISO9001,ISO14001,ISO45001,SGS,TUV

NO.	*Dimensions (DdTZ) (mm)**	NO.	*Dimensions (DdTZ) (mm)**
1	250322.0/1.7*54 X	2	250322.0/1.7*60 X
3	250322.0/1.7*72 X	4	250322.0/1.7*80 X
5	250322.0/1.7*100 X	6	250322.0/1.7*120 X
7	285322.0/1.7*54 X	8	285322.0/1.7*60 X
9	285322.0/1.7*72 X	10	285322.0/1.7*80 X
11	285322.0/1.7*80 X	12	285322.0/1.7*120 X
13	285322.0/1.75*54 X	14	285322.0/1.75*60 X
15	285322.0/1.75*72 X	16	285322.0/1.75*80 X
17	285322.0/1.75*100 X	18	285322.0/1.75*120 X
19	285402.0/1.75*60 X	20	285402.0/1.75*72 X
21	315322.25/2*54 X	22	315322.25/2*60 X
23	315322.25/2*72 X	24	315322.25/2*80 X
25	315322.25/2*100 X	26	315322.25/2*120 X
27	315402.25/2*60 X	28	Other

HSS slitting saw blade

Products features

The first is character by the low fragility, high yield point with consequent mechanical resistance and high degrees of toughness and wear resistance. The second, thanks to the cobalt, has excellent cutting adhesion and hardness and, as a consequence, it is particularly used in cutting stainless steels or materials with high mechanical resistance, which produce high temperatures in the contact area during the cutting process.

Suitable for cutting steel, stainless steel, bronze, copper,aluminum, iron . And all kinds of sharp of the metals. Tubes, solid bars, profiles....etc

Product advantages

High cutting performance thanks to high-speed steel material with a rigid texture and cut-resistant.

The Cold Cut Metal Saw cutting performance is very cost-effective, and the loss of equipment is lower than that of ordinary saw blades. Cold-cut saw blades have a longer service life.

Reasonable tooth shape design makes the cross section of the material smooth during cutting, and the tooth chips also have a reasonable direction and will not block the tooth chamber. This reduces many unnecessary procedures and reduces the processing cost of the product.

Using a cold cut metal saw is its ability to cut a wide range of metals without altering their physical properties. This means that the metals remain in their original shape and size without distortion, making it suitable for precision jobs. Moreover, the cold-cutting process eliminates the need for lubricants, which saves time and money on cleanup costs.

3. To be used in both manual or automated machines

4. Low friction coefficient, very high hardness, and very high-temperature resistance.

5. For relevant applications, please choose the right surface treatment.

Applications

Tube

Solid bar

All shapes

About us

Company brief introduction

Hangzhou FUWEISI Saw Industry Co.,ltd is located in the

beautiful and rich city-Hangzhou, which is the capital and important city and economic and cultural center of Zheiiang Province, enjoying a convenient traffic transportation with express road, railway and airplane, a network and high-tech city.

Hangzhou Fuweisi saw industry, is a professional manufacture company,which is concerned with research,desion,manufacture,sale and service of saw blades.we also provide technical support and consulting services,such as selection of cutting tools and improvement of equipment.Since our company established,we continues to introduce international advanced grinding and testing equipment from Germany and Japan,which builds a solid foundation to improve the quality of our products.Besides,we mainly produce and sell the "BOSS CUT' saw blades,which includes carbide circular saw blades, diamond saw blades and cermet support saw blades. Our goal is "Let the world believe in Made-in-China"

Our factory

Our Certificate

FAQS

Q: who are we?

A: We are based in Zhejiang, China, start from 2013,sell to Eastern Asia(30.00%),Southeast Asia(20.00%),Domestic Market(20.00%),South Asia(10.00%),Eastern Europe(5.00%),Mid East(5.00%),Southern Europe(5.00%),North America(5.00%). There are total about 11-50 people in our office.

Q: how can we guarantee quality?

A: Always a pre-production sample before mass production;
Always final Inspection before shipment;

Q: Can I require my own brand on the blade and packing

A: Yes,we accept the customized packing and brand printing.

Q: what can you buy from us?

A: All kinds of saw blade for metalworking.

Q: why should you buy from us not from other suppliers?

A: We specialize in this industry for more than 20 years experience, Albert Einstein says”All knowledge of reality begins and ends with experience”, highest price to quality ratio you can get,and We are also good at OEM.

Q: what services can we provide?

A: Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type:T/T,L/C,,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,French,Korean,Italian

Q: How to order

A: Quotation→ Invoice→ Payment→(Making mold)→(Samples)→Production→ Package→ Delivery→ Customs → Received.

Q: MOQ

A: Our minimun order quantity is 20 pcs.

Q: Return

A: All orders are no returns unless the products are defective in manufacture or incorrectly shipped.

Q: Defective items

A: We will accept defective item returns within 15 days of delivery for an exchange or replacement, or you can send it back to the manufacturer for repair or replacement. The customer is responsible for all shipping charges on returns.
Please pack the merchandise safely so it reaches us in the same condition it reached you.

Q: Customized service

A: Specific sizes, types, packaging&colors can be made to order. You can send us your details and we shall prepare individual quote upon receipt of your information.

Q: What is the difference between metal and wood circular saw blades?

A: Metal cutting saw blade with higher requirement of the material,hard enough to cut off the metal material, You shouldn’t use a wood cutting blade for metal because you risk blade fatigue and damage. Metal is harder and stronger than wood, so it requires sharper and heavy-duty blades to complete cuts. Wood is a soft material that doesn’t need a lot of “power” to be sliced through. A wood cutting blade overworks itself to cut metal efficiently. Meaning it will burn out faster and suffer from fatigue.
Furthermore, you risk damaging the blade when you cut metal. Wood cutting blades are exclusive to wood applications (the exception is non-ferrous metals). The wrong material can cause fractures and cracks. The increased feed pressure necessary for slicing hard metals can strip the blade’s teeth. Damaged blades aren’t useful, and they will poorly affect future projects.

Q: If we need technical support, can you help us?

A: Yes, we have an experienced team, offering our customers suitable design with professional advice, by our engineers and technicians.

Q: Are you a factory?

A: Yes,we are a professional saw blade factory over 15 years,
more than 15,000 m ’of production workshops and
15 production lines.

Q: Do you have the right to export?

A: Yes,We have the export certificate. And we have 10 years of independent export experience.lf you have any questions in freight forwarding and customs clearance, we can also help you solve them.Before your goods leave our factory,we can provide free storage for you.

Q: 16.Can you provide samples before we placing a big order? Is the samples free?

A: Yes,we can provide samples for you to test before you place the bulk order, but you need to bear the sample fee and shipping cost. We can give you some discount on your subsequent orders to make up your sample cost.

Hangzhou Fuweisi Saw Industry Co., Ltd. is well-known as one of the leading metal cutting circular saw blade manufacturers and suppliers in China. Please feel free to buy bulk metal cutting circular saw blade made in China here from our factory. All cutting blades are with high quality and competitive price.

NO.	*Dimensions (DdTZ) (mm)**	NO.	*Dimensions (DdTZ) (mm)**
1	250322.0/1.7*54 X	2	250322.0/1.7*60 X
3	250322.0/1.7*72 X	4	250322.0/1.7*80 X
5	250322.0/1.7*100 X	6	250322.0/1.7*120 X
7	285322.0/1.7*54 X	8	285322.0/1.7*60 X
9	285322.0/1.7*72 X	10	285322.0/1.7*80 X
11	285322.0/1.7*80 X	12	285322.0/1.7*120 X
13	285322.0/1.75*54 X	14	285322.0/1.75*60 X
15	285322.0/1.75*72 X	16	285322.0/1.75*80 X
17	285322.0/1.75*100 X	18	285322.0/1.75*120 X
19	285402.0/1.75*60 X	20	285402.0/1.75*72 X
21	315322.25/2*54 X	22	315322.25/2*60 X
23	315322.25/2*72 X	24	315322.25/2*80 X
25	315322.25/2*100 X	26	315322.25/2*120 X
27	315402.25/2*60 X	28	Other
