Home > Products > Metal Cutting Band Saw Blade > M51 Bimetal Band Saw Blade

Products

M51 Tool Steel Cutting Band Saw Blade

For M51 band saw blades, we are manufacturing full dimension and TPI, and we only use raw material from Europe, USA and Japan

Send Inquiry

Description

Hangzhou Fuweisi Saw Industry Co., Ltd. is one of the most reliable manufacturers and suppliers of m51 tool steel cutting band saw blade in China. With abundant experience, we warmly welcome you to buy high quality m51 tool steel cutting band saw blade from our factory. Thank you for your interest in our products.

Features of M51 bi-metal band saw blade:

1.M51 high hardness band saw blade designed for heavy duty sawing equipment.

2.M51 is the top band saw blade in the Eberle bi-metal range, designed for heavy-duty sawing equipment.

3.The alloy containing 10% cobalt and 10% tungsten greatly increases the sawing performance of the high-speed steel sawtooth, while cobalt-tungsten metal increases the heat resistance and fatigue resistance of the saw blade;

4.The tooth tip hardness of the product is 68-69HRC, wear resistance Good, high sharpness, smooth tooth groove surface, excellent cutting performance, stable saw back performance, high fatigue resistance.

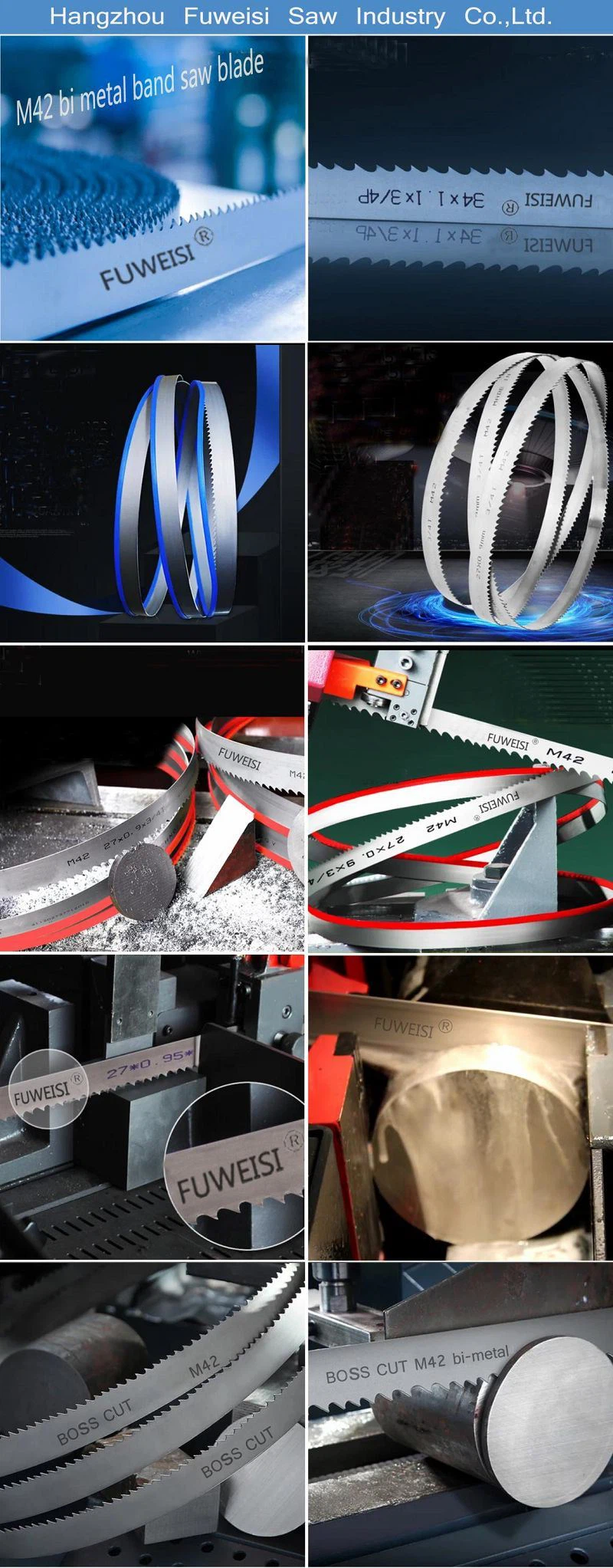

image003(001)

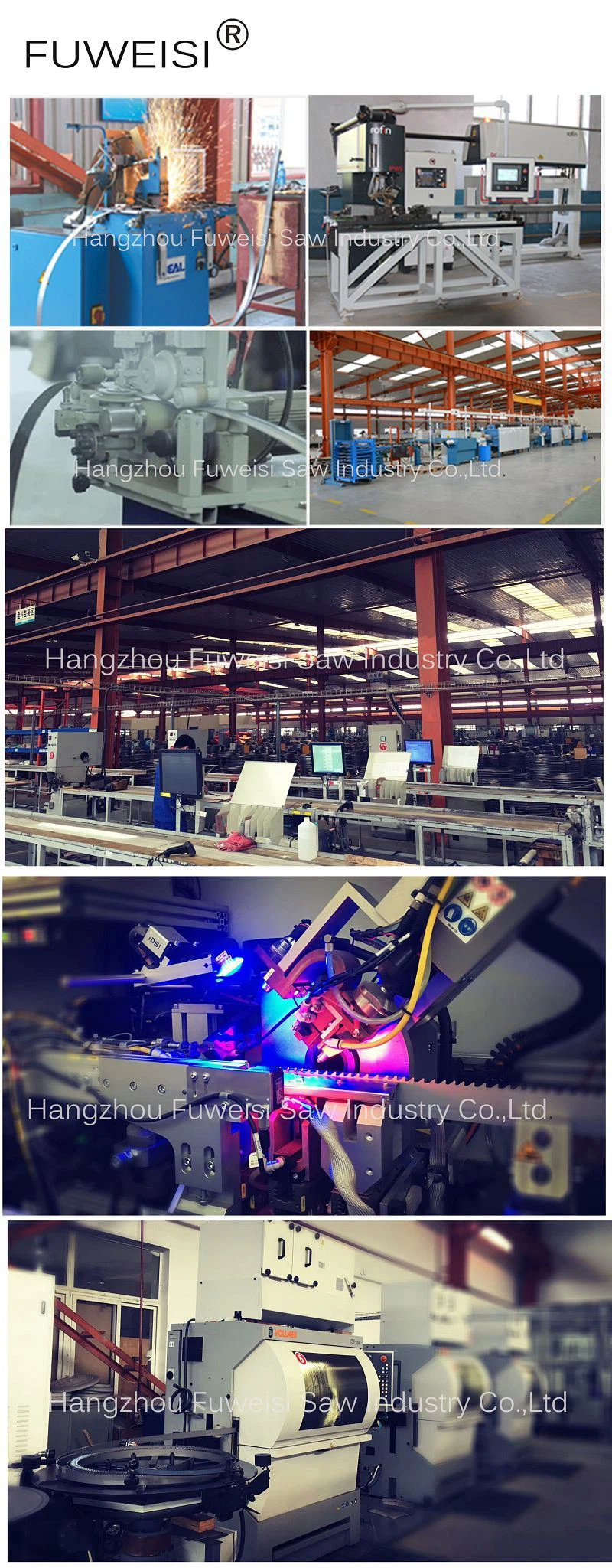

Factory production view:

image005(001)

FUWEISI M51 Bi-metal Band Saw Blade For Cutting Square Steel Bar.
For M51 band saw blades, we are manufacturing full dimension and TPI, and we only use raw material from Europe, USA and Japan, all our production machinery are from Europe or best machine tool supplier in China, and we have a very strict QC system, each meter of blade are monitored by computer and examing tools. We have 50 people only are responsible for quality checking, and have more than 100 band saw blade engineers in our plant. So we are very proud of our blades manufactured.

Specially designed for cutting hard steel,such as alloy steel,stainless steel.

size/TPI

10/14

8/12

6/10

5/8

4/6

3/4

2/3

1.4/2

1/1.5

1.7/2.5

0.75/1

0.75/1.25

27 x 0.9mm

34 x 1.1mm

41 x 1.3mm

54 x 1.6mm

67 x 1.6mm

80 x 1.6mm

Front Angle	The range of the cutting material	Steel types	Note
0°	1.the profile angle is bigger and the strength is higher, so it's suitable for cutting different kinds of the material		It's better to choose the bigger front tooth agnle when the stiffness for the procee system is poor or the power for the saw machines is shortage
0°~5°	1.suitable for cutting brittle materials;	Such as: gray cast iron, High speed steel and chilled cast iron, tool steel, alloy steel, spring steel, high quality carbon structural steel, bearing steel, steel, martensite stainless steel and heat resistant steel (HT200,65Mn,W18Cr4V,T12,50Cr,60Si2MnA,1Cr12,1Cr13,GCr15)
	2.suitable for cutting hard material;
	3.Suitable for interrupted cutting or the forging ,casting with crustaceous;
	4.applicable to small section,thin walled pipe
6°~10°	1.applicable to the workpiece material strength,low hardness, and good plasticity	Such as: ordinary carbon structural steel, high quality carbon structural steel, alloy steel, carbon tool steel and austenitic stainless steel, nodular cast iron, nonferrous metals (Q235-A,20,30,45,T10,40Cr,20CrMo,1Cr18Ni9Ti,Cu And so on)

Some production steps:

image007(001)

Packaging & Shipping
Packing Details : packaged in carton, 1coil/ctn, 100 meters per coil, we also can supply the length as you need.
Delivery Details : 5-15 days after order
image009(001)
